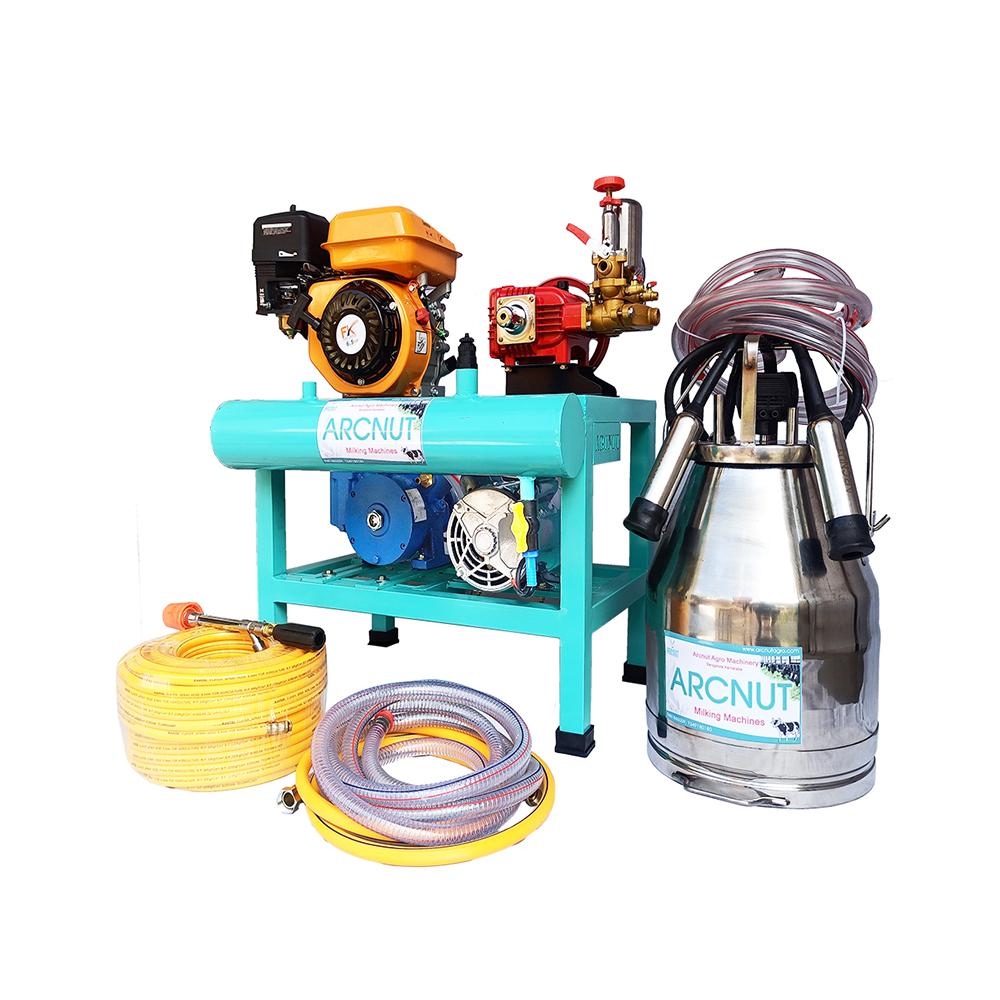

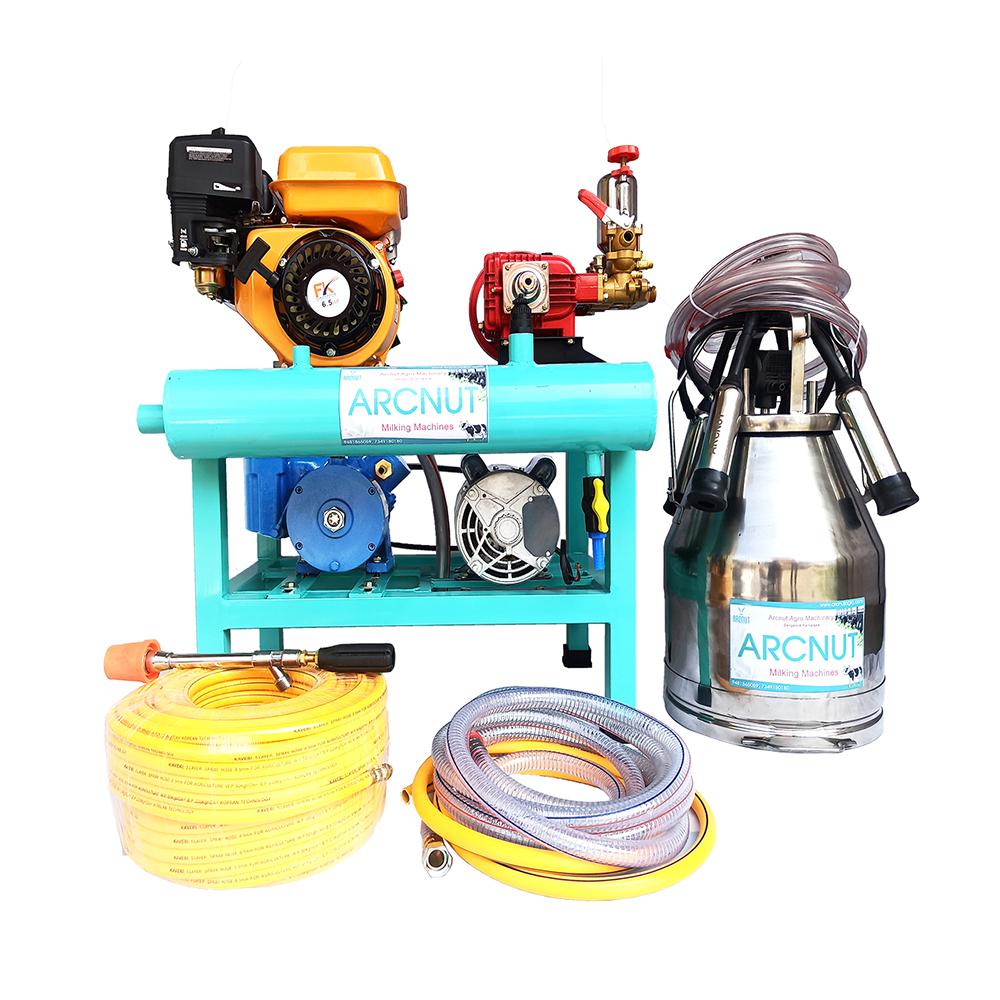

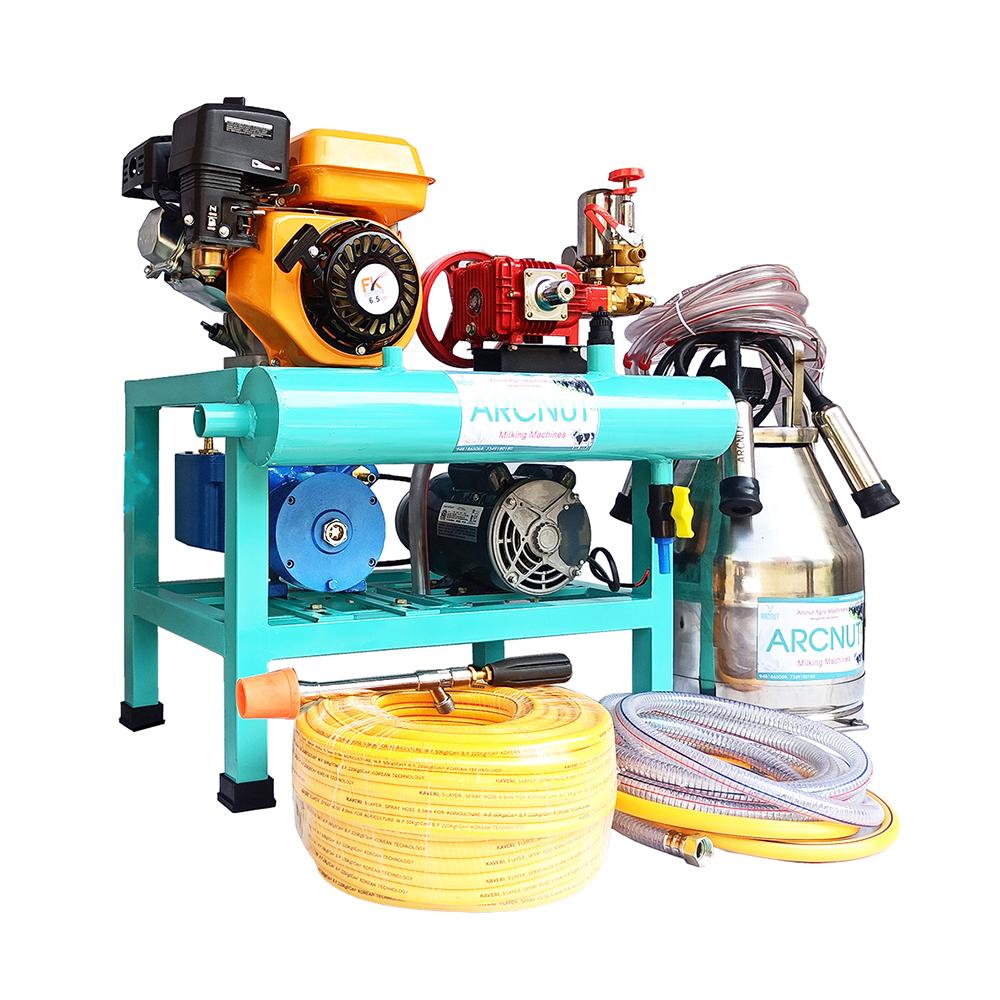

Arcnut Milking Machine
Arcnut Milking Machine
They are well reputed firm instrumental in manufacturing, supplying and exporting supreme quality Milking Machine. These machines are widely demanded in the market for their user friendly design and high efficiency. We design these machines in compliance with latest industrial norms by utilizing advanced technology, thus making them precisely designed and superior finished
Features
Suitability: 1 to 15 cows
Can: 25 liter
One cow at one time
Electric motor: 1 hp
Petrol engine: 6.5 hp
Vacuum pump: 350 lpm
Water pump: 22 LPM
Efficient and Reliable for fast and Hygienic milking
Indigenous design with international Quality
Sturdy and compact
High operational fluency
Noiseless functioning
Long service life
Specifications
Technical Specification
Motor
Motor power: 1 HP Single phases
Rotation (rpm): 1440 RPM
Suitable for 160 V to 230 V Operation; 50/60 Hz
Built-in Thermal over Load Protector
US Designed Switch for Reliability
Meets IS Performance Standards
Vacuum Pump
Flow: 350 liter per minutes at free air Pressure
Max pressure (Vacuum): 600 mm in hg
Oil lubricated pump
Vanes Fiber
Material Cast Iron
Vacuum Port 1/4 x BSP
Milking Unit (Bucket System)
Number of bucket: 1 no’s
Can: SS 304 -20 liter’s (ISO STANDARD)
Pulsator: 60:40 Ratios, two exit type
Milk liner: 24 mm silicon food grade
Teat cup: 4 number SS 304
Milk hoses: Nontoxic Food graded
Claw Weight (g): 2250 Gr.
Milk Claw Capacity: 240 cc
Milk Hose: 225mm (24mm x 14mm)
Pulse Hose: 200mm (14mm x 7mm
Body Frame
Body Frame
Material: Mild Steel
Vacuum Tank: 20 liter for uniform vacuum flow
Length: 90 cm
Width: 30 cm
Height: 30 cm
Adjustable
Powder coated
Pipeline or Vacuum line
PVC pipe: 40 mm
Line Max length: 50 feet
Gat valves: ½ “pvc shut off valves
Special Features
Suitability: 1 to 15 cows per hour
One cow at one time
Milking time: 5-6 minutes per cow Avg 12 litter
No moving parts in power source
Motor run in low voltage range ie 160v-230v
Efficient and Reliable for fast and Hygienic milking
Indigenous design with international Quality
Does not harm udder health
Easy to fit and remove
Low operating noise
Low operating temperature
Long vane life
Advantage
Sturdy and compact
Powder coated body avoid the corrosion
Non-stick bucket easy to clean
Efficient and Reliable for fast and Hygienic milking
High operational fluency
Noiseless functioning
Increase your productivity
Long service life
Does not harm udder health
Easy to fit and remove
High milking consistency
Zero maintenance
Optimum vacuum over the year
