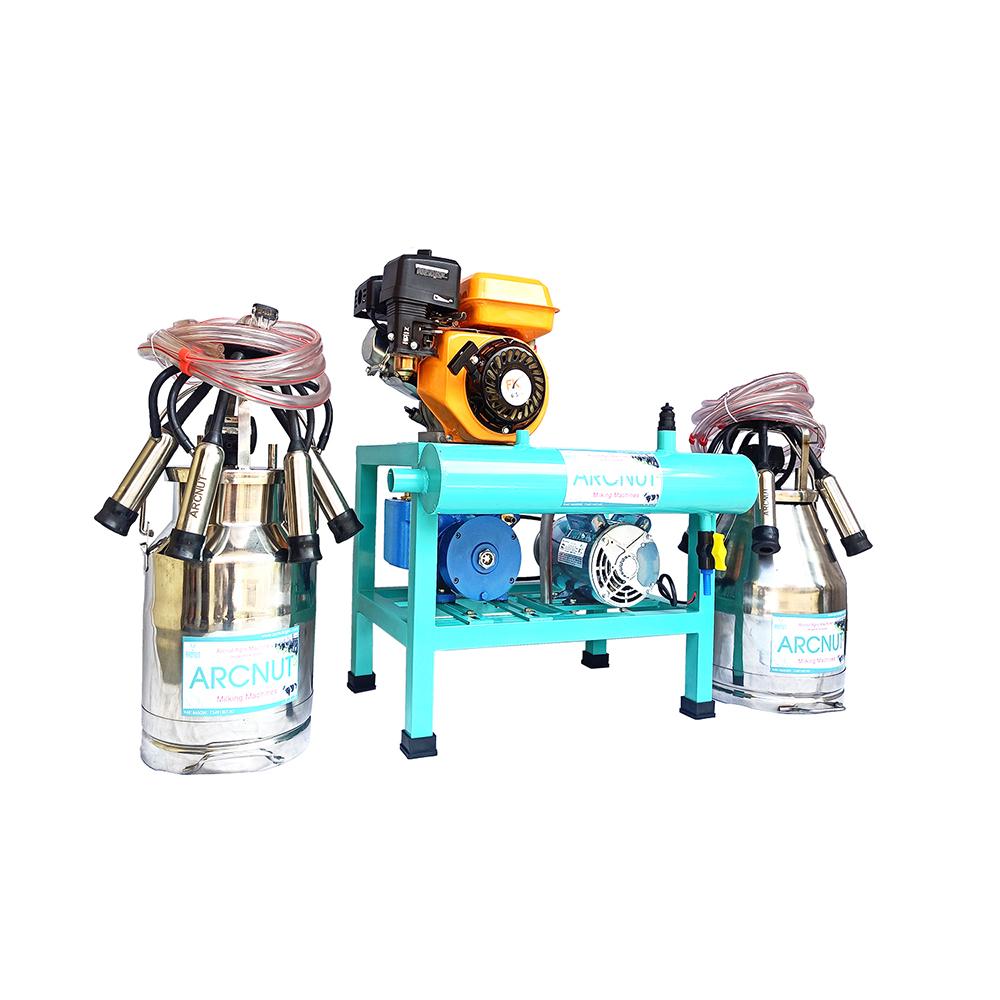

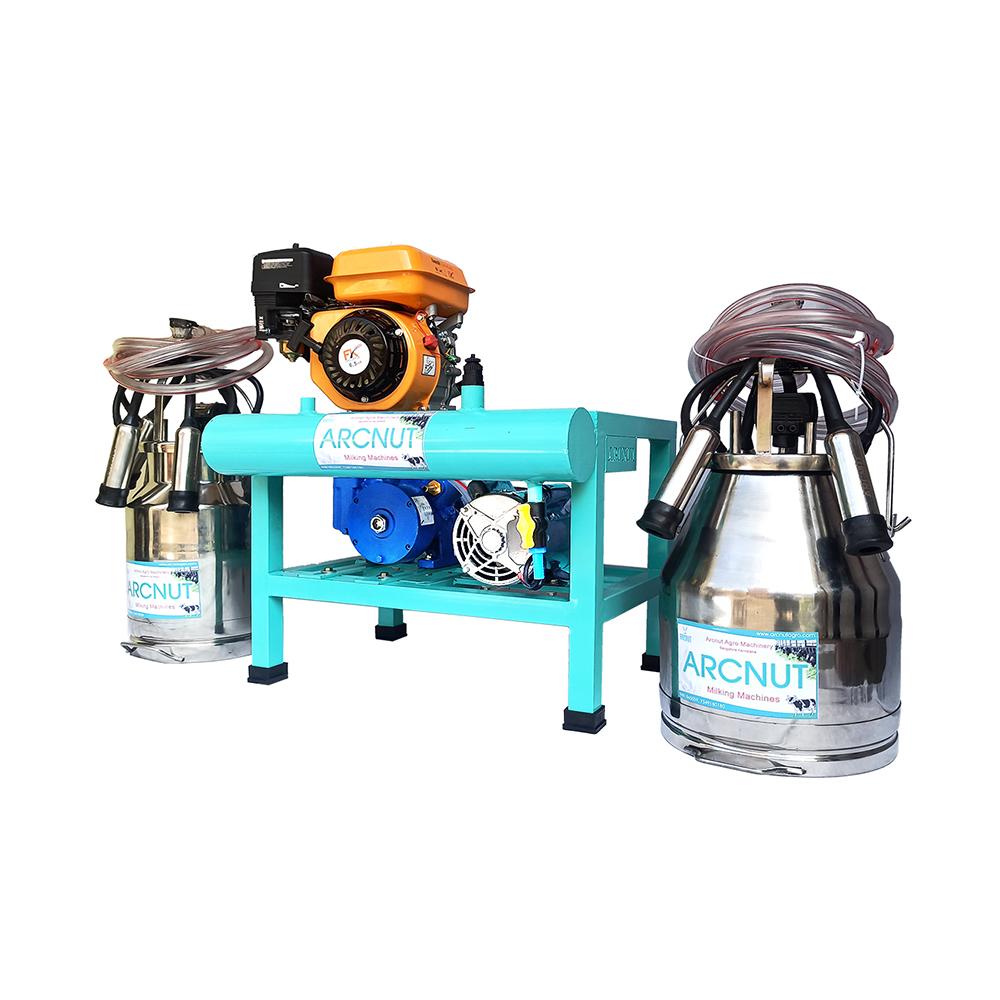

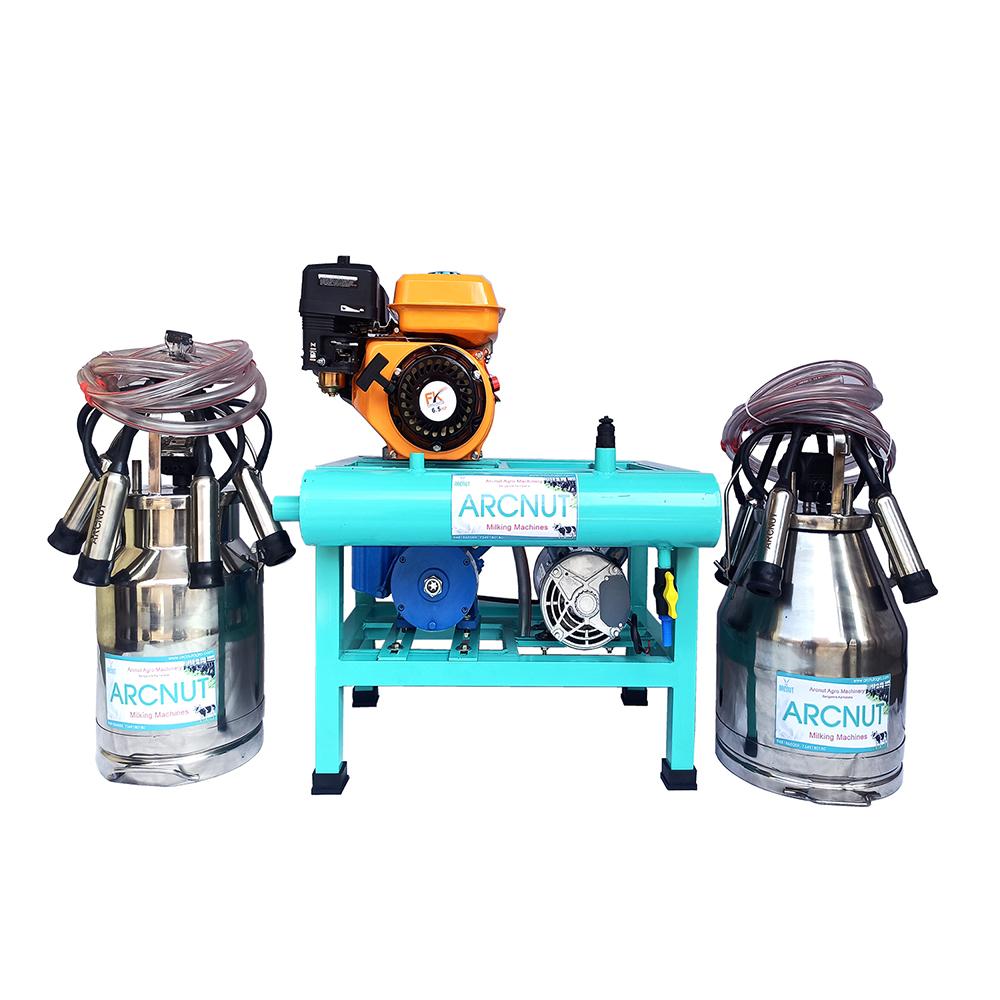

Dual Power Double Can Milking Machine
Dual Power Double Can Milking Machine
Milking Machine for cows Double Can milking machine is suitable for 10 t 22 cows , its run both electricity and petrol , in the Double Can milking machine we can milk two cows at same time in between 5 to 6 minutes, this milking machine specially design for medium dairy farmers having below 25 cows and electricity interruption areas.
Suitable: 10 to 22 cows per hour, Motor 1 hp power, Vacuum Pump 350 LPM, 2 hp petrol engine, And Milking bucket: 20 litter, Milking time: 3-5 minutes per cows
Specifications
Technical Specification
Motor
Motor power: 1 HP Single phases
Rotation (rpm): 1440 RPM
Suitable for 160 V to 230 V Operation; 50/60 Hz
Built-in Thermal over Load Protector
US Designed Switch for Reliability
Meets IS Performance Standards
Vacuum Pump
Flow: 350 liter per minutes at free air Pressure
Max pressure (Vacuum): 600 mm in hg
Oil lubricated pump
Vanes Fiber
Material Cast Iron
Vacuum Port 1/4 x BSP
Milking Unit (Bucket System)
Number of bucket: 2 no’s
Can: SS 304 -20 liter’s (ISO STANDARD)
Pulsator: 60:40 Ratios, two exit type
Milk liner: 24 mm silicon food grade
Teat cup: 4 number SS 304
Milk hoses: Nontoxic Food graded
Claw Weight (g): 2250 Gr.
Milk Claw Capacity: 240 cc
Milk Hose: 225mm (24mm x 14mm)
Pulse Hose: 200mm (14mm x 7mm
Body Frame
Body Frame
Material: Mild Steel
Vacuum Tank: 20 liter for uniform vacuum flow
Length: 90 cm
Width: 30 cm
Height: 30 cm
Adjustable
Powder coated
Pipeline or Vacuum line
PVC pipe: 40 mm
Line Max length: 120 feet
Gat valves: ½ “pvc shut off valves
