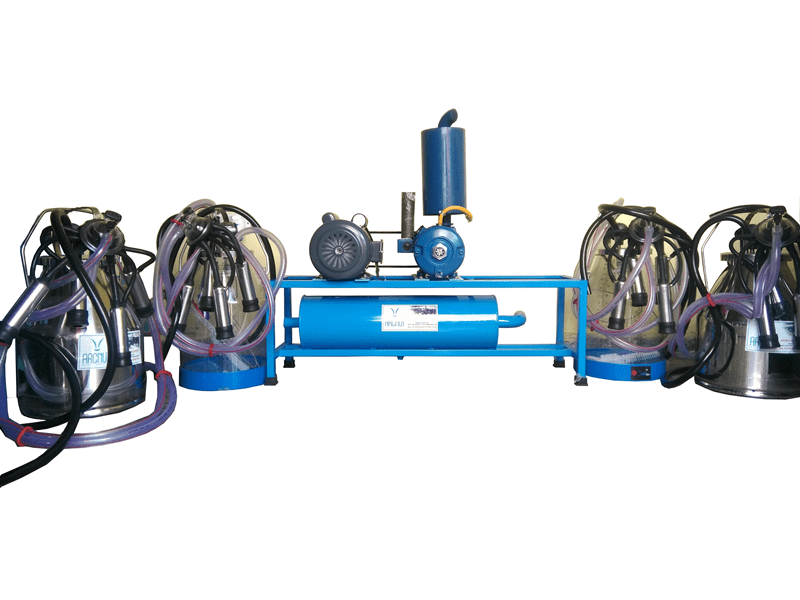

Four Bucket Milking Machine
Four Bucket Milking Machine
Milking Machine Four Bucket is suitable for medium dairy farmers who have nearly 40 cattle.
Pipeline or fixed type arrangements made for vacuum flow across dairy shed by putting control valve between each 10 feet for supply the air into milking buckets, this machine easy to handle and noiseless work.
Suitability: 25 to 40 cows /buffalo
Power: Single phase 2 hp electricity
Vacuum range: 700 lpm
Buckets: 20 or 25 litre 4 No’s
Pipeline type
Specifications
Technical Specification
Motor
Motor power: 2 HP Single phases
Rotation (rpm): 1440 RPM
Suitable for 160 V to 230 V Operation; 50/60 Hz
Built-in Thermal over Load Protector
US Designed Switch for Reliability
Meets IS Performance Standards
Vacuum Pump
Flow: 700 liter per minutes at free air Pressure
Max pressure (Vacuum): 600 mm in hg
Oil lubricated pump
Vanes Fiber
Material Cast Iron
Vacuum Port 1/4 x BSP
Milking Unit (Bucket System)
Number of bucket: 4 no’s
Can: SS 304 -20 liter’s (ISO STANDARD)
Pulsator: 60:40 Ratios, two exit type
Milk liner: 24 mm silicon food grade
Teat cup: 4 number SS 304
Milk hoses: Nontoxic Food graded
Claw Weight (g): 2250 Gr.
Milk Claw Capacity: 240 cc
Milk Hose: 225mm (24mm x 14mm)
Pulse Hose: 200mm (14mm x 7mm
Body Frame
Body Frame
Material: Mild Steel
Vacuum Tank: 20 liter for uniform vacuum flow
Length: 120 cm
Width: 30 cm
Height: 30 cm
Adjustable
Powder coated
Pipeline or Vacuum line
PVC pipe: 40 mm
Line Max length: 200 feet
Gat valves: ½ “pvc shut off valves
Special Features
Suitability: 20 to 40 cows per hour
One cow at one time
Milking time: 4-6 minutes per cow Avg 12 litter
No moving parts in power source
Motor run in low voltage range ie 160v-230v
Efficient and Reliable for fast and Hygienic milking
Indigenous design with international Quality
Does not harm udder health
Easy to fit and remove
Low operating noise
Low operating temperature
Long vane life
Advantage
Sturdy and compact
Powder coated body avoid the corrosion
Non-stick bucket easy to clean
Efficient and Reliable for fast and Hygienic milking
High operational fluency
Noiseless functioning
Increase your productivity
Long service life
Does not harm udder health
Easy to fit and remove
High milking consistency
Zero maintenance
Optimum vacuum over the year
