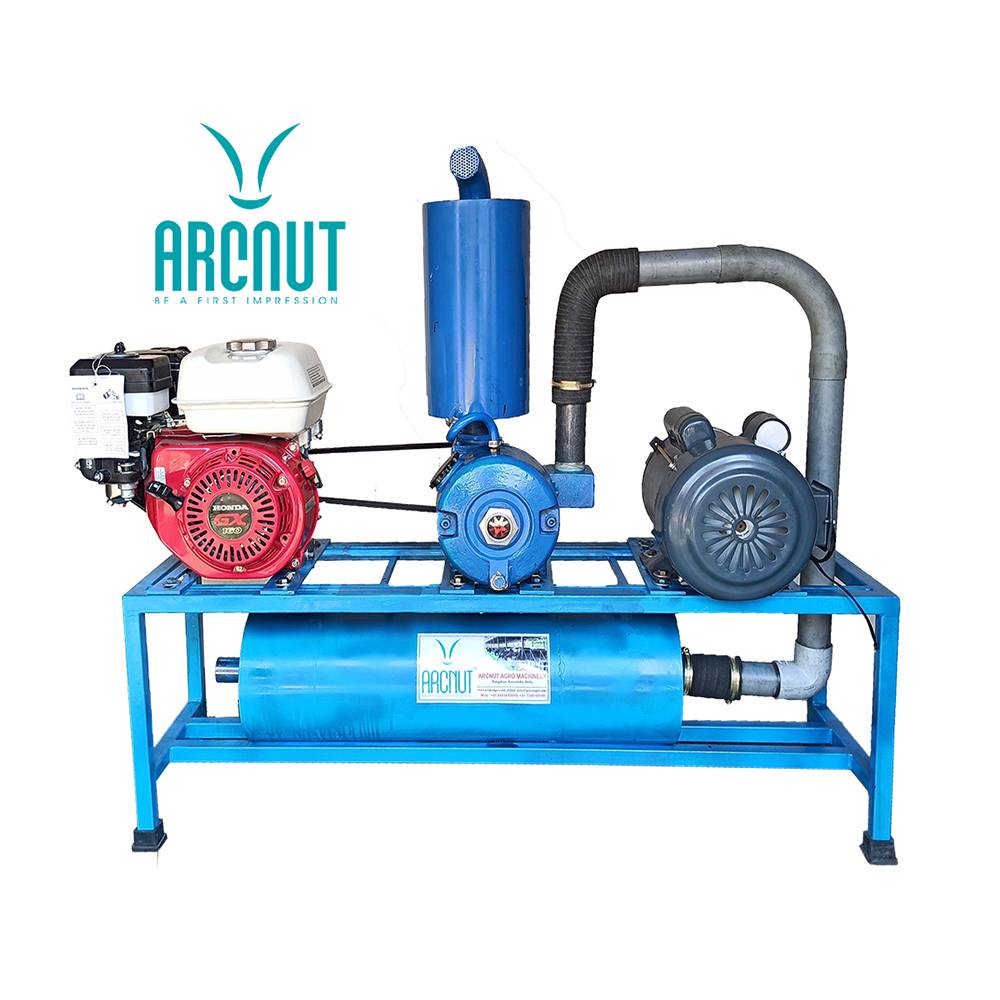

Four Bucket Milking Machine With Petrol
Four Bucket Milking Machine With Petrol
Milking Machine Four Bucket is suitable for medium dairy farmers who have nearly 40 cattle.
Pipeline or fixed type arrangements made for vacuum flow across dairy shed by putting control valve between each 10 feet for supply the air into milking buckets, this machine easy to handle and noiseless work.
Suitability: 25 to 40 cows /buffalo
Power: Single phase 2 hp electricity
Vacuum range: 700 lpm
Buckets: 20 or 25 litre 4 No’s
Pipeline type
Specifications
Technical Specification
Motor
Motor power: 2 HP Single phases
Rotation (rpm): 1440 RPM
Suitable for 160 V to 230 V Operation; 50/60 Hz
Built-in Thermal over Load Protector
US Designed Switch for Reliability
Meets IS Performance Standards
Vacuum Pump
Flow: 700 liter per minutes at free air Pressure
Max pressure (Vacuum): 600 mm in hg
Oil lubricated pump
Vanes Fiber
Material Cast Iron
Vacuum Port 1/4 x BSP
Petrol Engine
Engine type:4-stroke single cylinder, OHV petrol engine,
25° inclined cylinder, Horizontal shaft
Cylinder sleeve type:Cast iron sleeve
Bore x Stroke: 68 x 45 mm
Displacement: 163 cm?3;
Compression ratio:9.0 : 1
Net power:3.6 kW ( 4.8 HP ) / 3600 rpm
Cont rated power:2.5 kW ( 3.4 HP ) / 3000 rpm,
2.9 kW ( 3.9 HP ) / 3600 rpm
Milking Unit (Bucket System)
Number of bucket: 4 no’s
Can: SS 304 -20 liter’s (ISO STANDARD)
Pulsator: 60:40 Ratios, two exit type
Milk liner: 24 mm silicon food grade
Teat cup: 4 number SS 304
Milk hoses: Nontoxic Food graded
Claw Weight (g): 2250 Gr.
Milk Claw Capacity: 240 cc
Milk Hose: 225mm (24mm x 14mm)
Pulse Hose: 200mm (14mm x 7mm
Body Frame
Body Frame
Material: Mild Steel
Vacuum Tank: 20 liter for uniform vacuum flow
Length: 120 cm
Width: 30 cm
Height: 30 cm
Adjustable
Powder coated
Pipeline or Vacuum line
PVC pipe: 40 mm
Line Max length: 200 feet
Gat valves: ½ “pvc shut off valves
