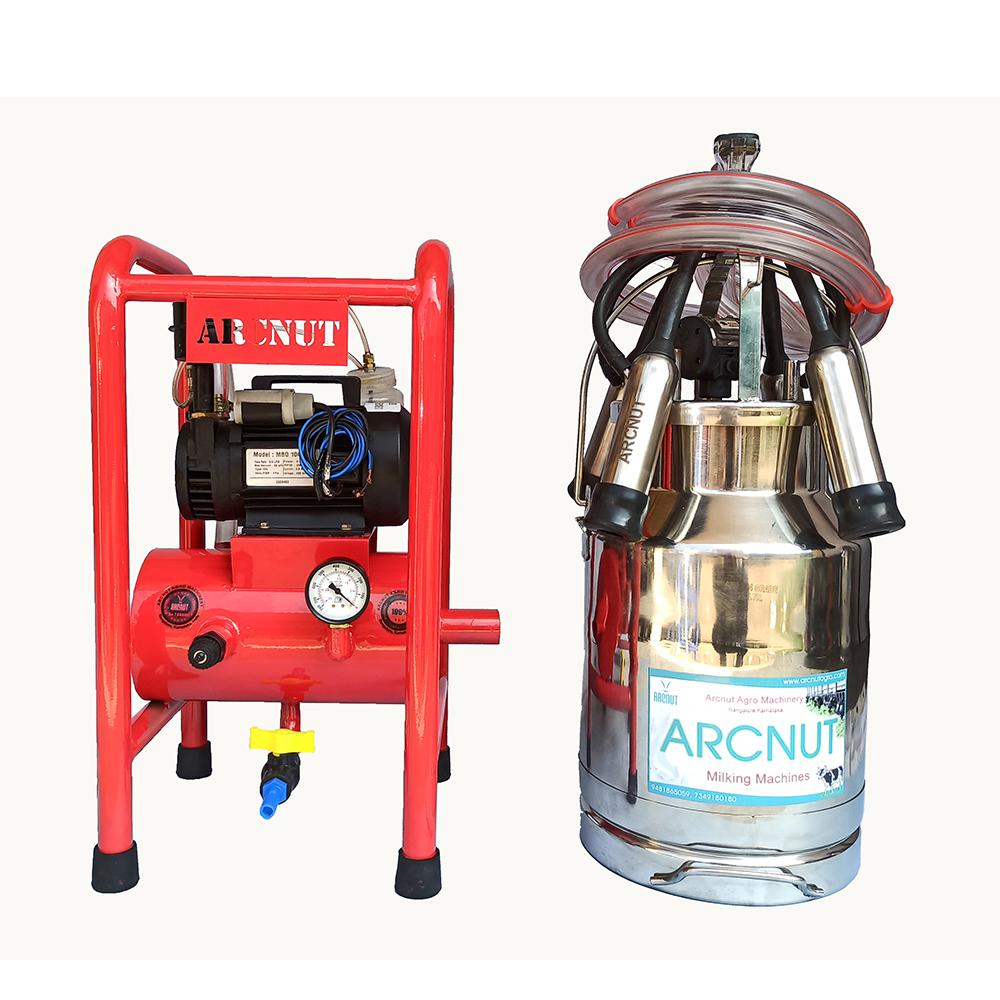

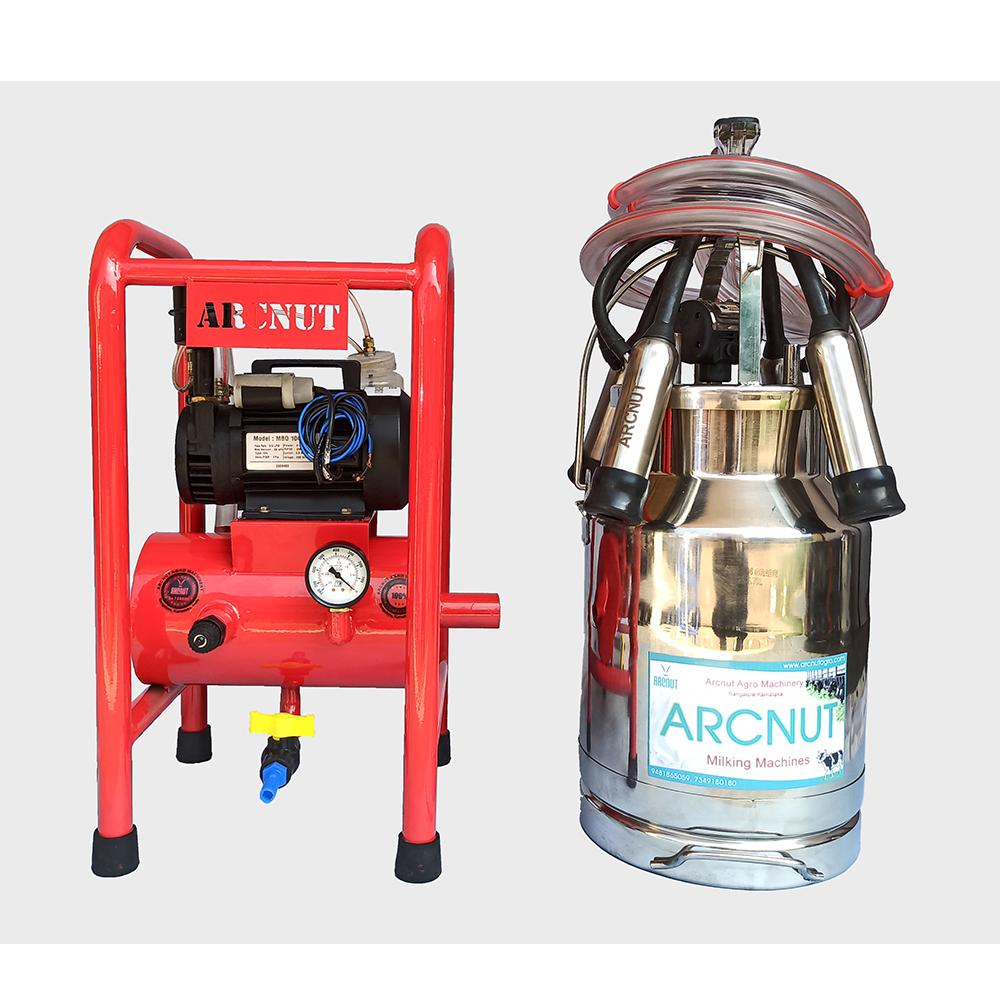

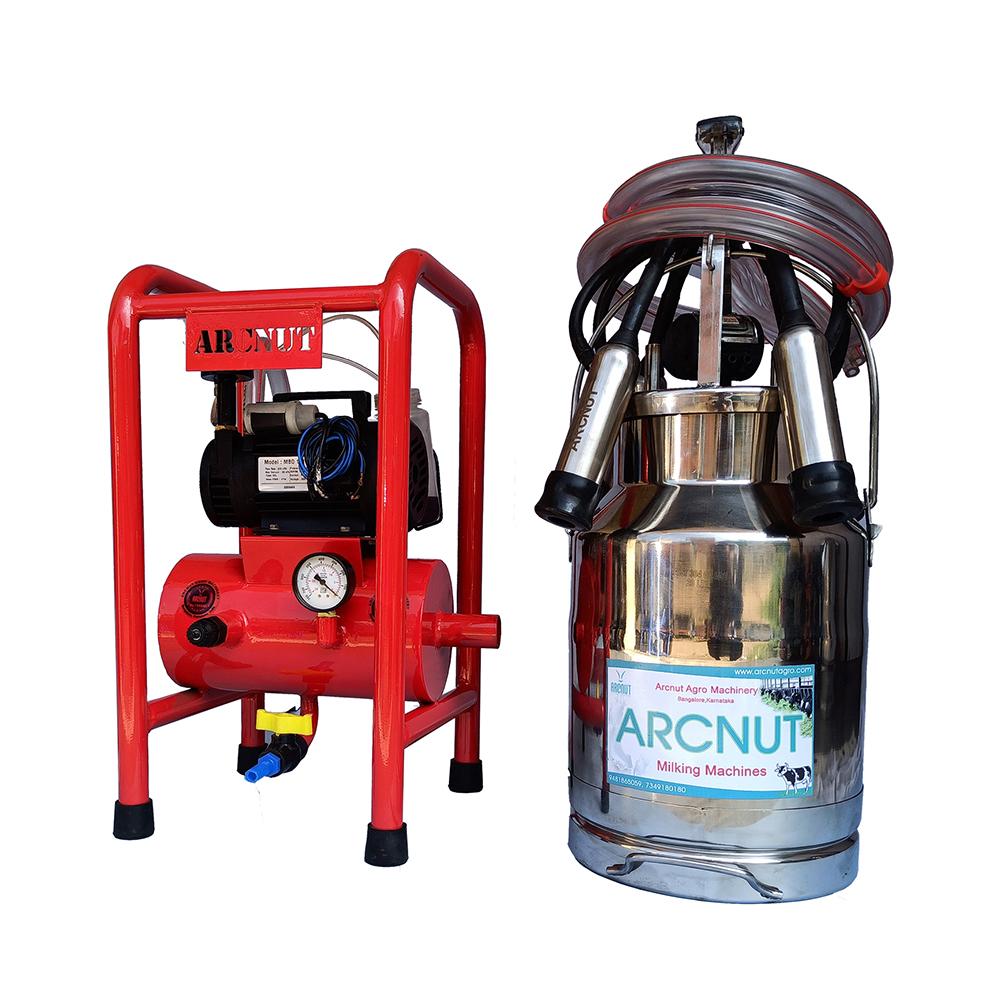

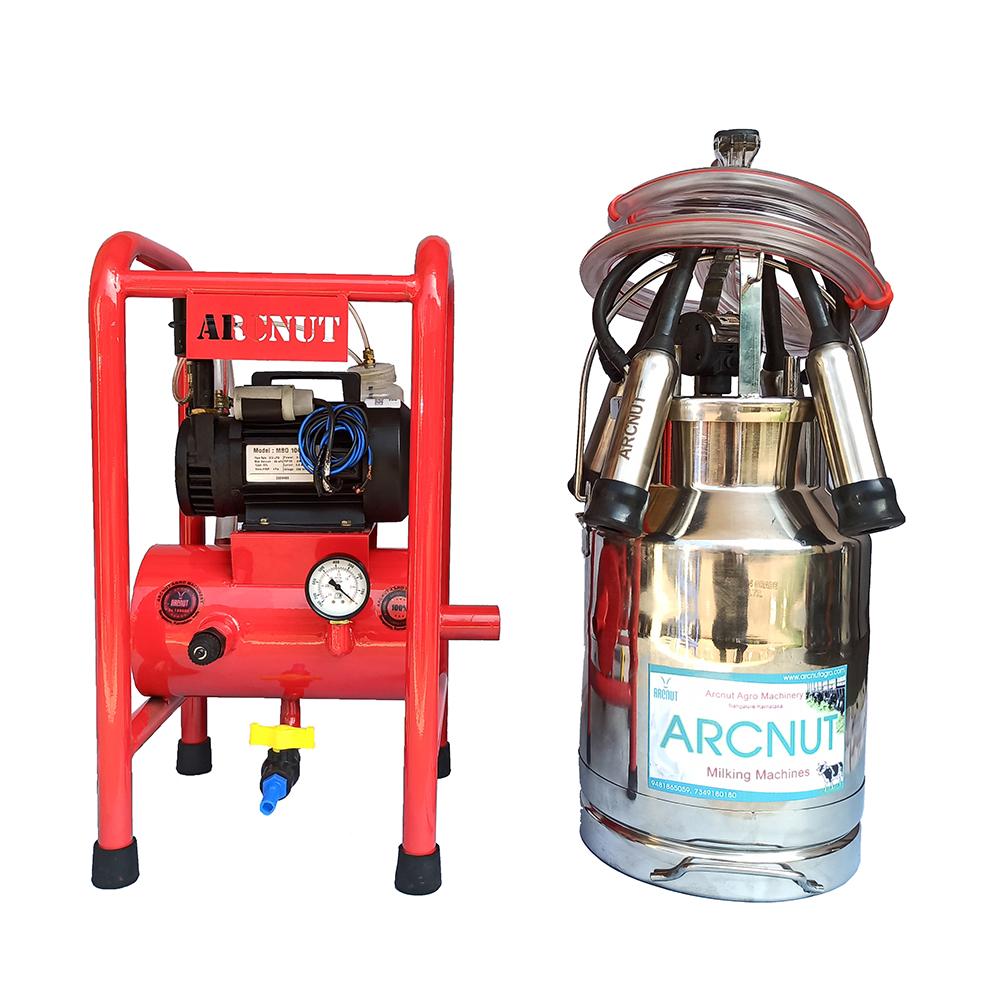

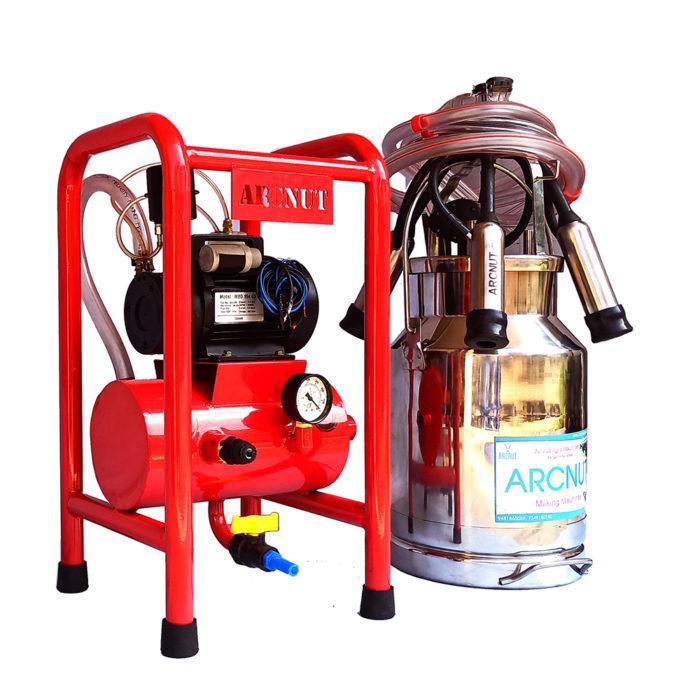

Nano Milking Machine for 1 to 5 cows
Nano milking machine
Nano milking machine is suitable for small dairy farmers who have below 5 cows for home use. And where continuous electricity is available in milking specific time, this machine is specially designed for running in the oil condition where cooling completely in the air and oil Lubrication. it is capable of running a max of 30 minutes continuously for milking 1 to 5 cows.
Specifications
Technical Specification
Manoblock or Direct Drive Type
Motor: ½ HP
Vacuum Pump: 2000 LPM
Rotation (rpm): 1440 RPM
Max pressure (Vacuum): 600 mm in hg
Fiber Vanes
Voltage range: 220-230V
Material Cast Iron
Vacuum Port 1/4 x BSP
Milking Unit (Bucket System)
Number of bucket: 1 no’s
Can: SS 304 -20 liter’s (ISO STANDARD)
Pulsator: 60:40 Ratios, two exit type
Milk liner: 24 mm silicon food grade
Teat cup: 4 number SS 304
Milk hoses: Nontoxic Food graded
Claw Weight (g): 2250 Gr.
Milk Claw Capacity: 240 cc
Milk Hose: 225mm (24mm x 14mm)
Pulse Hose: 200mm (14mm x 7mm
Body Frame
Material: Mild Steel
Vacuum Tank: 6 liter for uniform vacuum flow
Length: 35 cm
Width: 30 cm
Height: 30 cm
Pipeline or Vacuum line
PVC pipe: 40 mm
Line Max length: 25 feet
Gat valves: ½ “pvc shut off valves
Special Features
Suitability: 1 to 5 cows per hour
One cow at one time
Milking time: 5-6 minutes per cow Avg 12 litter
No moving parts in power source
Indigenous design with international Quality
Easy to fit and remove
Low operating noise
Advantage
Sturdy and compact
Powder coated body avoid the corrosion
Non-stick bucket easy to clean
Efficient and Reliable for fast and Hygienic milking
High operational fluency
Noiseless functioning
Increase your productivity
Long service life
Does not harm udder health
Easy to fit and remove
High milking consistency
Zero maintenance
Optimum vacuum over the year
