Two Bucket Milking Machine with Cleaning Pump
Two Bucket Milking Machine with Cleaning Pump

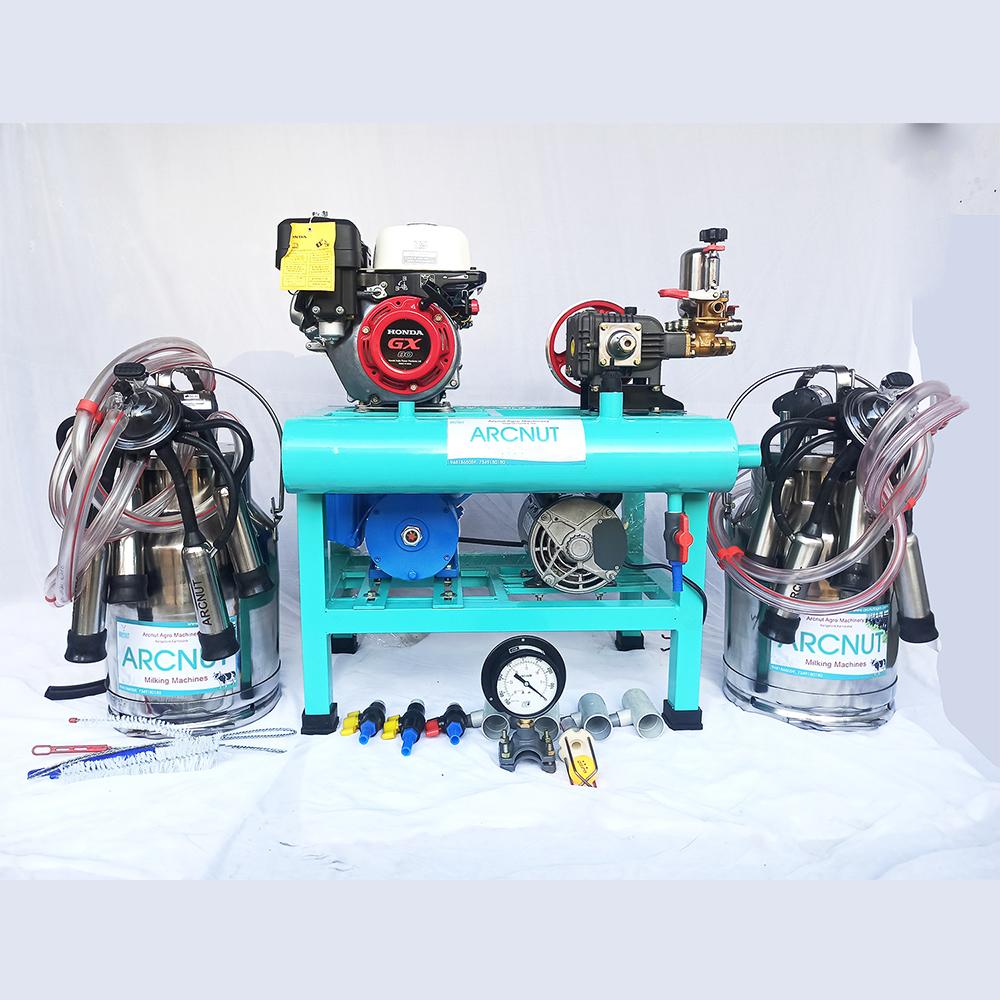

Two Bucket Milking Machine with Cleaning Pump with petrol operated .
Milking Machine with Shed Cleaning Single Bucket System is Suitable for 22 cattle Farm and additional of shed cleaning water pressure pump is worth for farm clean in time.
Power: 1 Hp
Pump: 350 Lpm
Petrol: 2 Hp
Htp: 22 LPM
Specifications
Technical Specification
Motor
Motor power: 1 HP Single phases
Rotation (rpm): 1440 RPM
Suitable for 160 V to 230 V Operation; 50/60 Hz
Built-in Thermal over Load Protector
US Designed Switch for Reliability
Meets IS Performance Standards
Vacuum Pump
Flow: 350 liter per minutes at free air Pressure
Max pressure (Vacuum): 600 mm in hg
Oil lubricated pump
Vanes Fiber
Material Cast Iron
Vacuum Port 1/4 x BSP
Milking Unit (Bucket System)
Number of bucket: 2 no’s
Can: SS 304 -20 liter’s (ISO STANDARD)
Pulsator: 60:40 Ratios, two exit type
Milk liner: 24 mm silicon food grade
Teat cup: 4 number SS 304
Milk hoses: Nontoxic Food graded
Claw Weight (g): 2250 Gr.
Milk Claw Capacity: 240 cc
Milk Hose: 225mm (24mm x 14mm)
Pulse Hose: 200mm (14mm x 7mm
Body Frame
Body Frame
Material: Mild Steel
Vacuum Tank: 20 liter for uniform vacuum flow
Length: 75 cm
Width: 75 cm
Height: 75cm
Adjustable
Powder coated
Pipeline or Vacuum line
PVC pipe: 40 mm
Line Max length: 120 feet
Gat valves: ½ “pvc shut off valves
Petrol Engine: 2 HP
Four Strokes
Coil Start
Rpm: 3600
4 stroke, Air Cooled, Single Cylinder, Horizontal Shaft
Engine Net Power : 1.6 kW 3600 rpm
HTP PUMP
LPM: 22
water pressure pump
Special Features
Suitability: 12 to 22 cows per hour
One cow at one time
Milking time: 4-6 minutes per cow Avg 12 litter
No moving parts in power source
Motor run in low voltage range ie 160v-230v
Efficient and Reliable for fast and Hygienic milking
Indigenous design with international Quality
Does not harm udder health
Easy to fit and remove
Low operating noise
Low operating temperature
Long vane life
Advantage
Sturdy and compact
Powder coated body avoid the corrosion
Non-stick bucket easy to clean
Efficient and Reliable for fast and Hygienic milking
High operational fluency
Noiseless functioning
Increase your productivity
Long service life
Does not harm udder health
Easy to fit and remove
High milking consistency
Zero maintenance
Optimum vacuum over the year
